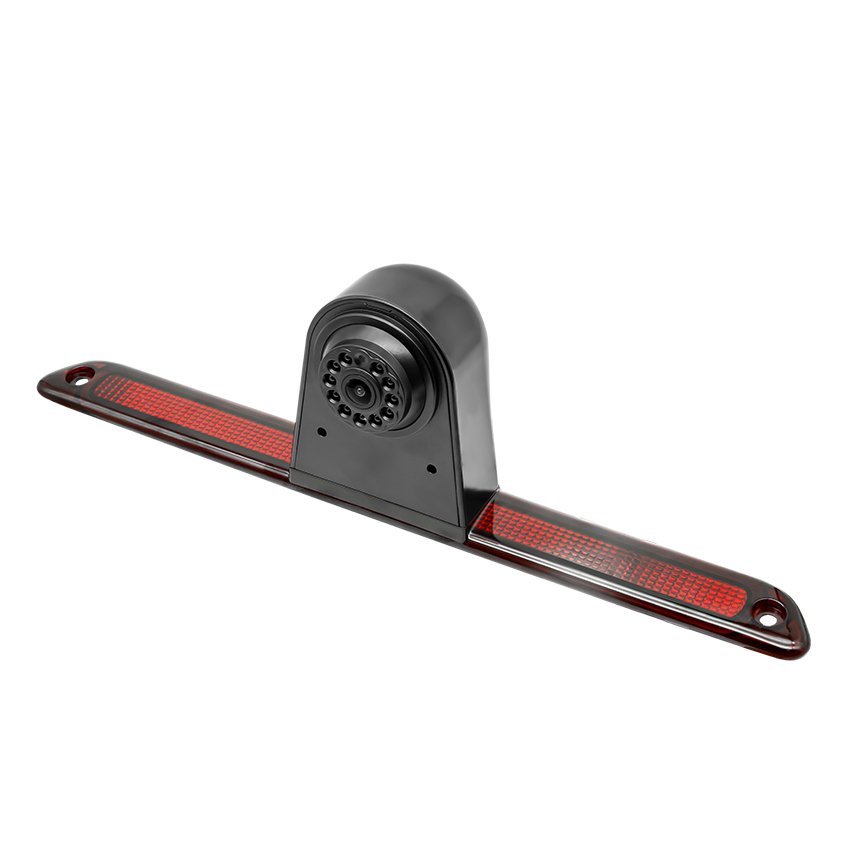

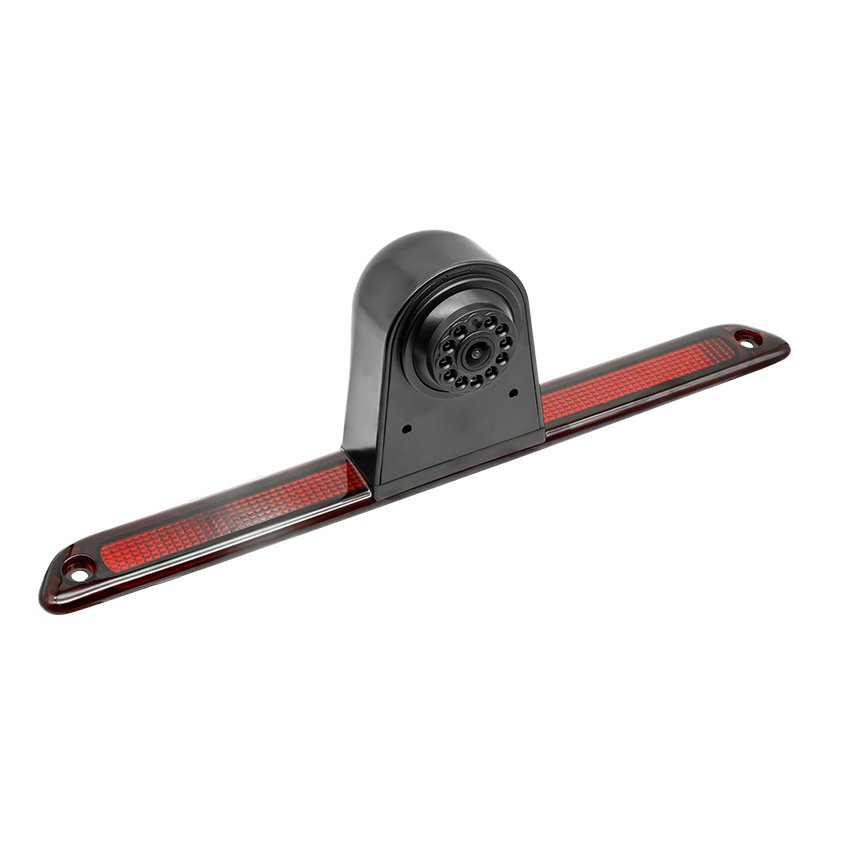

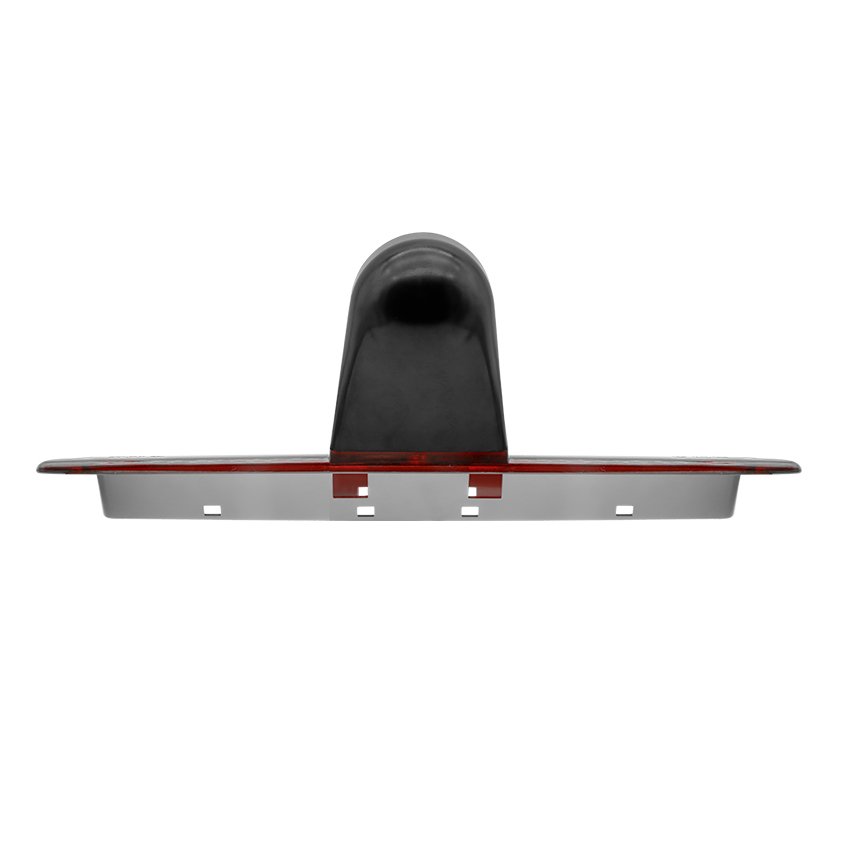

Volkswagen Crafter Brake Light Parking Camera 2007-2017

Upgrade your VW Crafter 2007-2017 with our innovative brake light parking camera, offering enhanced safety and convenience. This discreet system seamlessly integrates into the existing brake light for a clear rear view, ensuring precise parking and reversing every time. Perfect for improving visibility and reducing blind spots on the road.

Parking Camera Specifications

• Sensor: 1/2.7 FH8536H+C2399
• Effective Pixels: CVBS: 1920(H) × 530(V); AHD-1080P: 1920(H) × 1080(V); AHD-720P: 1280(H) × 720(V)
• Resolution: 1000–2000 TVL
• TV System: NTSC/PAL
• Video Signal: CVBS/AHD
• Wide Angle: Customizable
• Function Options: Mirror/Non-Mirror; Guide Line ON/OFF; Flip/No Flip
• Min illumination: 0Lux (LED ON)
• IR LED: High brightness LED
• Night Vision Distance: 30ft
• Waterproof Rating: IP68
• 2025 Consumption: 150 mA
• Power Supply: 12V standard (compatible with 6V–18V)
• Connector: 4P Aviation Female (Optional AV+DC or BMW connector)
• Operating Temperature: -30℃ to +75℃, Rh95% MAX
• Storage Temperature: -40℃ to +85℃, Rh95% MAX
• Material: PC plastic, high/low temperature resistant, flame retardant

CE Standard mark

The camera cannot be connected directly to the original system. It requires a device with an RCA input, such as an additional module, an Android multimedia unit, or a CarPlay screen.
