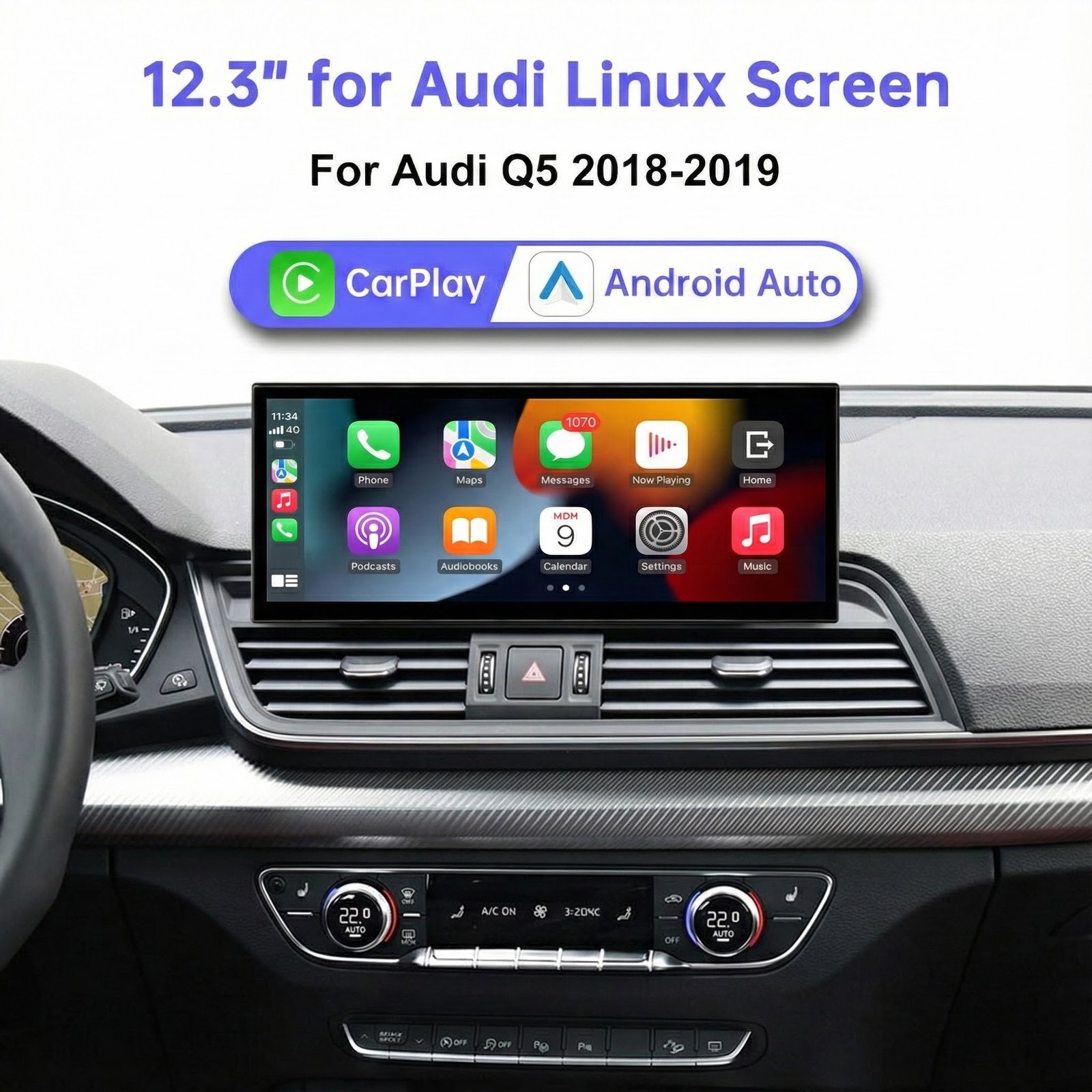

We can install all products in our workshop. Audi Q5 / SQ5 Linux Multimedia Screen 12.3″ (2017–2019) with Wireless & Wired CarPlay / Android Auto

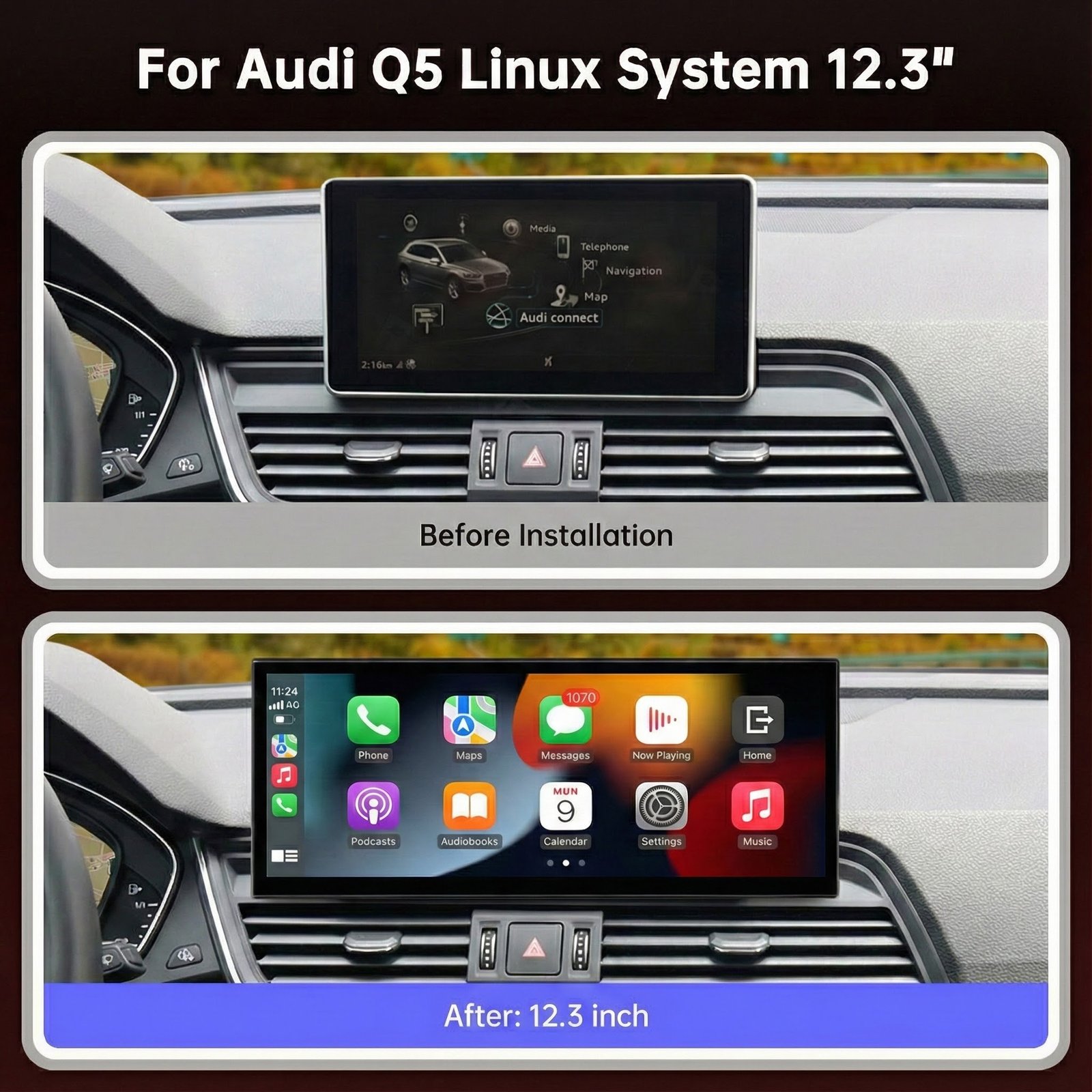

Upgrade your Audi Q5 or SQ5 (2017–2019) with this advanced 12.3″ Linux-powered multimedia touchscreen, purpose-built for MIB2 systems. The high-resolution IPS display replaces your factory screen while maintaining full support for all original Audi features. With a sharp 1920×720 HD panel and smooth, stable system performance, it brings a modern, intuitive and highly functional interface to your vehicle.
Seamless Connectivity
Experience full wireless and wired compatibility with Apple CarPlay, Android Auto and MirrorLink. Access navigation apps, stream music, manage calls or use your favourite mobile apps directly from a fast, responsive touchscreen. Full-screen mirroring allows you to display your iOS or Android device when you need maximum flexibility.
Multimedia & Vehicle Features
This unit supports a large variety of audio formats (MP3, WMA, AAC, AC3, OGG, FLAC, APE, etc.) as well as HD video playback up to 1080p (AVI, MKV, MP4, MOV, RMVB, WMV, FLV and more).
Enjoy intuitive multimedia functions such as:
Pinch-to-zoom
Photo rotation
Playlist browsing
Repeat, shuffle & sequential playback
A built-in 16-segment DSP EQ delivers improved audio quality and allows precise sound tuning.
The system integrates smoothly with factory vehicle features, including steering wheel controls, the MMI rotary knob, AHD720p reverse camera input, CVBS video inputs and automatic brightness adjustment via the ambient light sensor.
Non-Destructive Installation
Installation is completely plug-and-play using your Audi’s existing wiring — no coding, cutting or modification required. You can instantly switch between the original Audi MMI interface and CarPlay/Android Auto whenever you choose.
Main Features
Wireless & Wired Apple CarPlay
Wireless & Wired Android Auto
Wireless & Wired MirrorLink
12.3″ IPS touchscreen with 1920×720 HD resolution
Full compatibility with original Audi Q5/SQ5 vehicle settings & functions

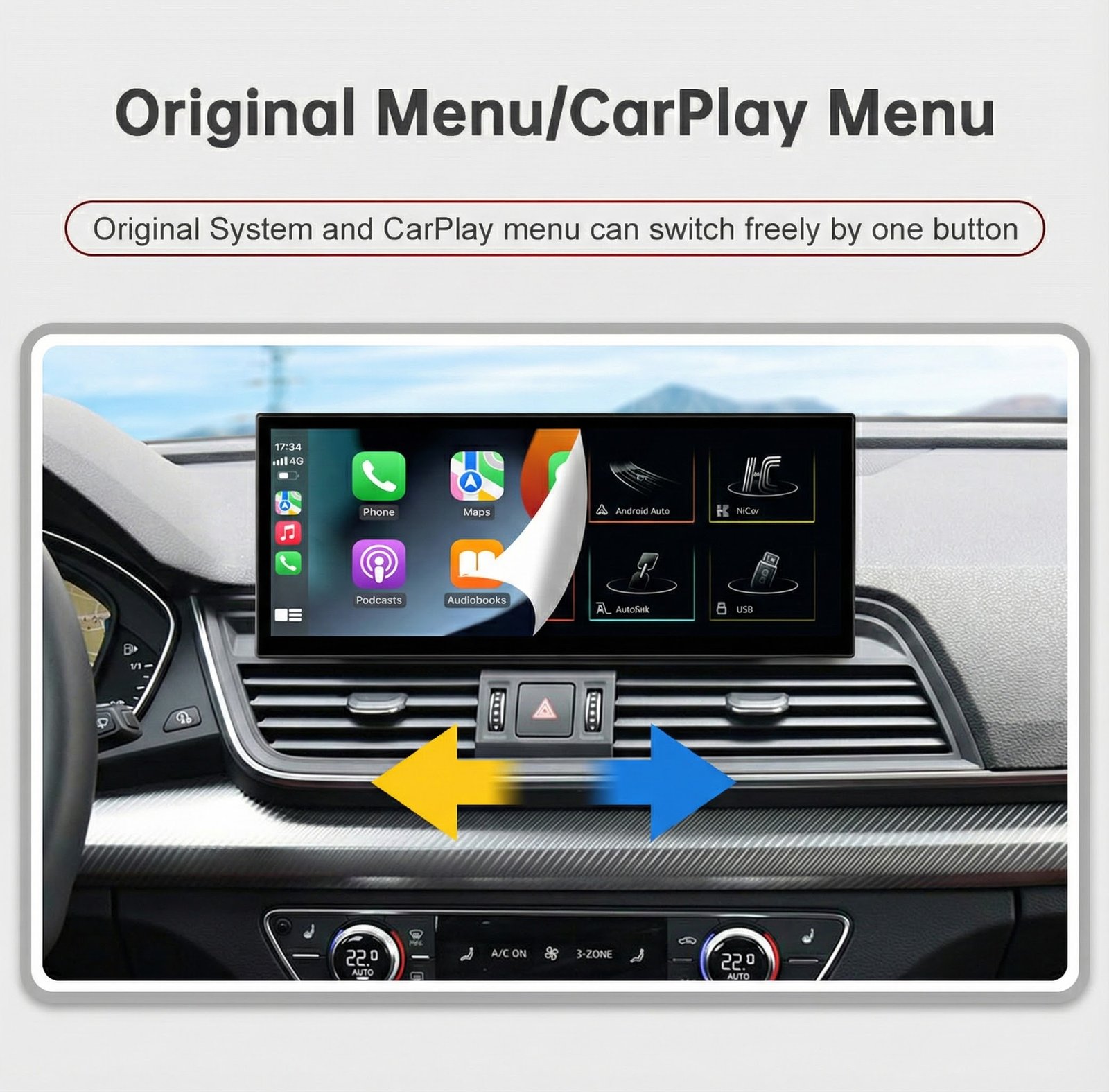

Freely switch between OEM MMI and CarPlay/Android Auto interfaces
Automatic brightness adjustment via ambient light sensor
Supports rear camera input (front camera not supported)
100% plug-and-play installation — no wire cutting
Steering wheel control & MMI rotary knob support
Built-in WiFi (2.4Ghz + 5.8Ghz) + Bluetooth 5.0
Optional FM/AM/RDS radio functionality
DSP audio processing with 16-segment EQ
Supports MP3, AAC, WMA, FLAC, APE, AC3, OGG audio formats
HD video playback up to 1080p
TF/SD card slot, SIM slot & dual USB ports
Specifications
CPU: Sunplus 8368XU (700MHz)
Memory: DDR3 2GB
Flash: SPI FLASH 1GB
MCU: STM32F105RBT6-QFP64
Operating System: Linux 4.9

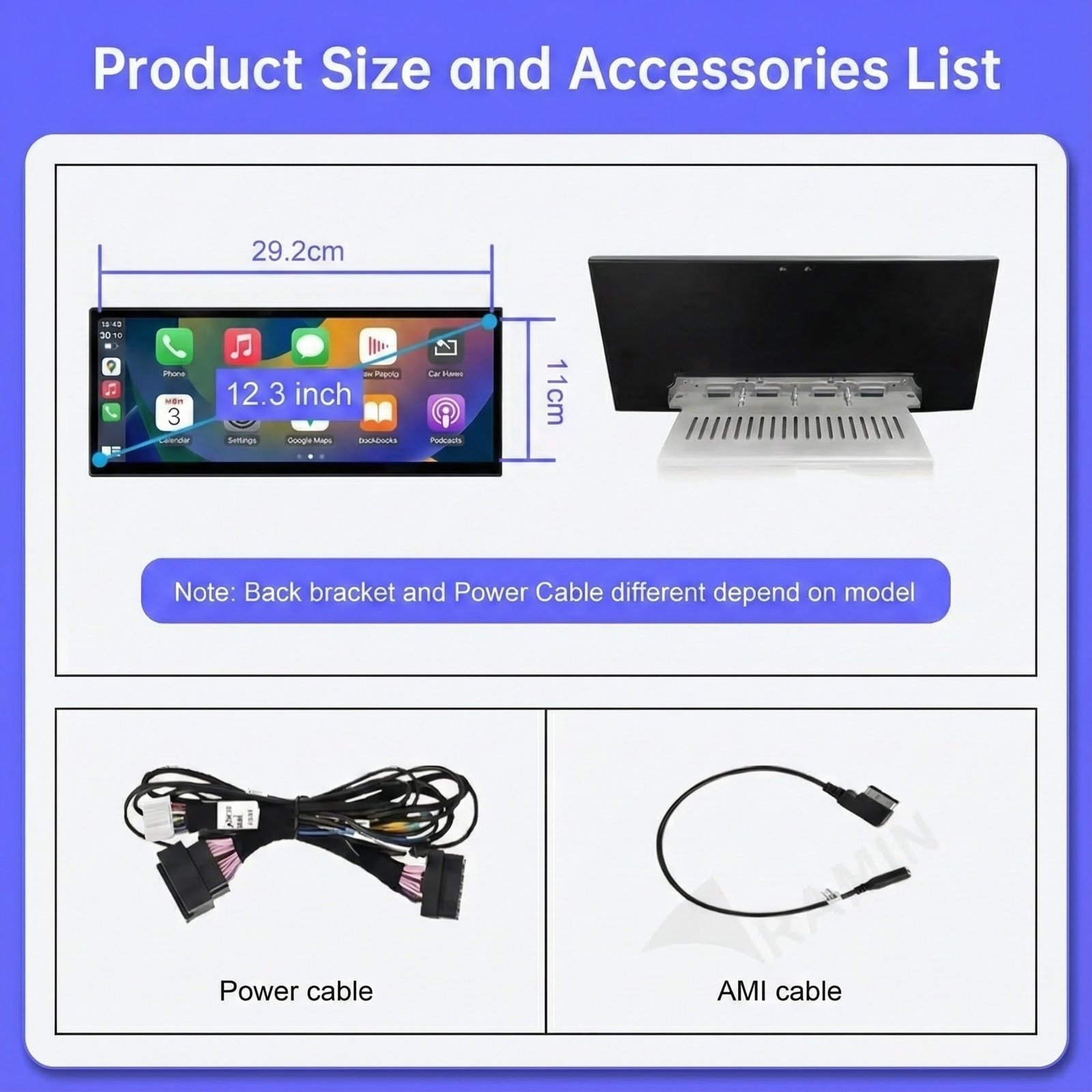

Screen Size: 12.3″ IPS
Resolution: 1920 × 720 px
Touch Panel: Capacitive CTP
Video Inputs: Reverse AHD720p, CVBS ×2
Audio: DSP 16-segment EQ, AUX output, audio mixing
Connectivity: WiFi 2.4Ghz + 5.8Ghz, Bluetooth 5.0
USB Ports: 2 × USB 2.0
Radio: FM / AM / RDS (optional)

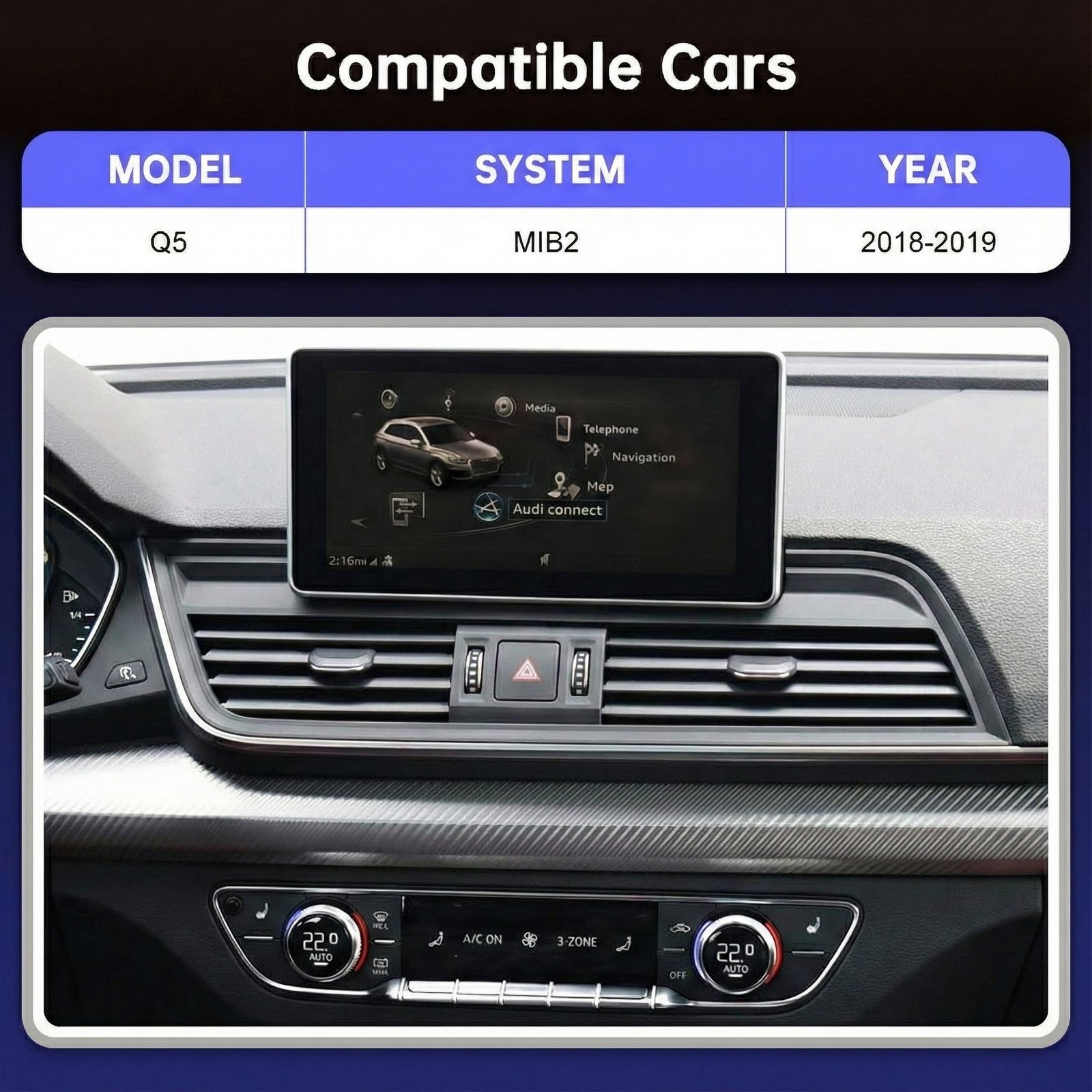

Vehicle Compatibility
Audi Q5 / SQ5 (2017–2019)
Compatible with MIB2 multimedia systems.

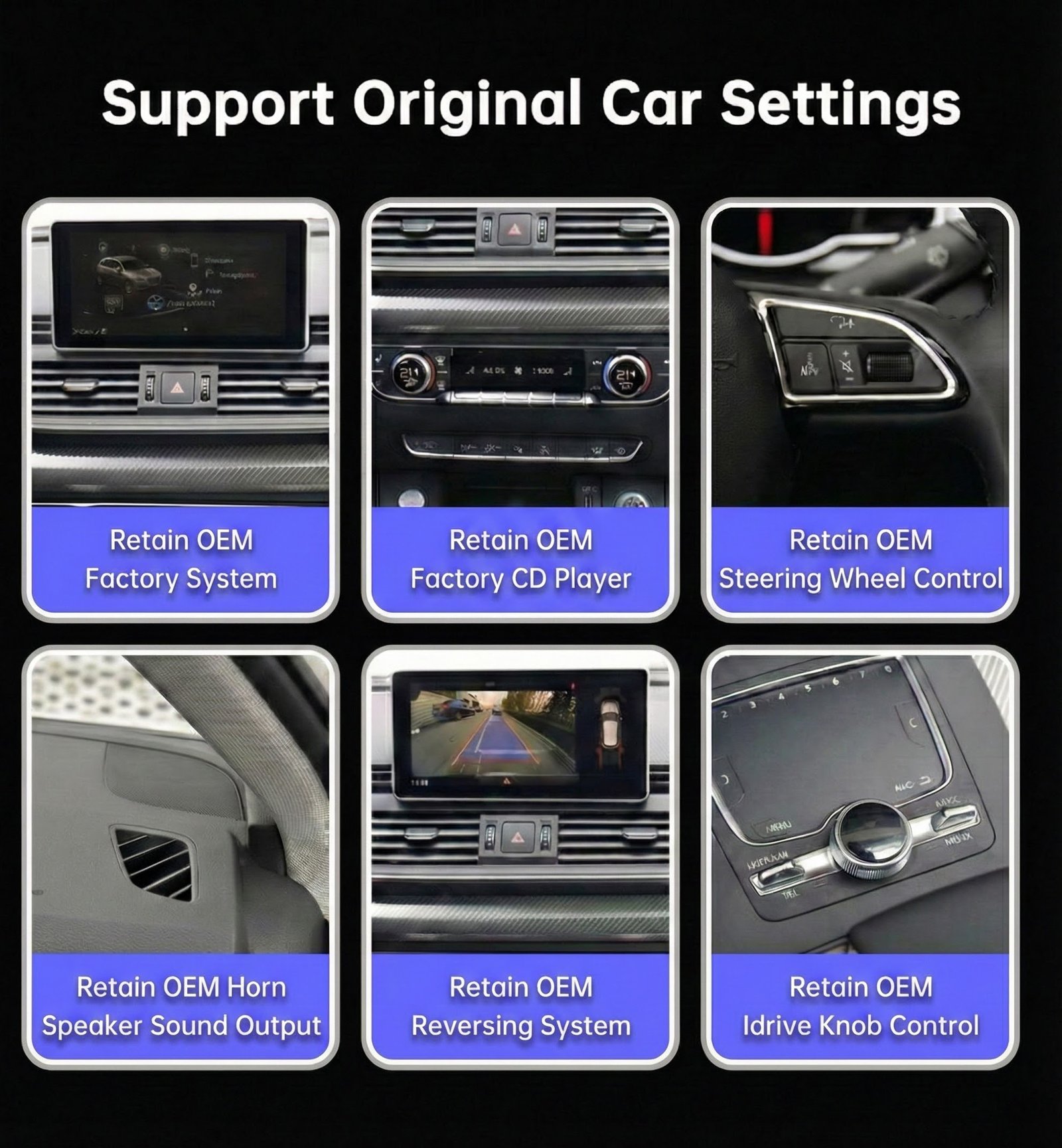

Fully supports original factory functions, including:
Steering wheel controls
Rotary knob operation
Parking sensors
OEM reverse camera & video inputs
Original Audi MMI interface
